04371-60070 Spider Kit Universal Joint For Toyota Land Cruiser Prado GRJ120 GRJ150 TRJ120 GRJ200 UZJ200

Product Description:

A universal joint spider kit, also referred to as a universal joint repair kit or universal joint service kit, is an assortment of components designed for the repair or replacement of a universal joint (U-joint) in a vehicle's drivetrain. This critical component allows for efficient power transfer between two shafts that are positioned at an angle to each other.

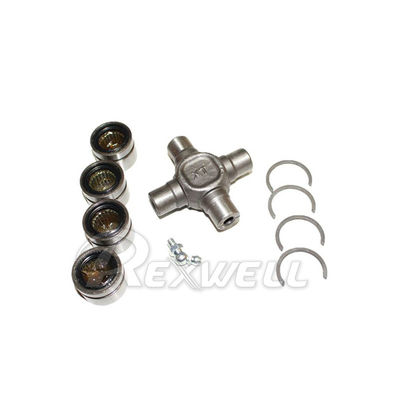

The universal joint spider kit typically contains the following components:

• Spider
• Needle Bearings
• Bearing Cups
• Snap Rings
• Grease Fittings (optional)

Spider

Also known as the cross, the spider is the central element of the U-joint. It is a cross-shaped body with needle bearings or bushings attached at each end. The spider serves as a connection between the two yokes of the U-joint, allowing for rotation and flexibility.

Needle Bearings

The kit typically contains a set of needle bearings that fit into the bearing cups of the U-joint spider. These bearings facilitate smooth rotation and reduce friction between the moving parts of the U-joint.

Bearing Cups

The bearing cups are cylindrical metal housings that hold the needle bearings in place. They are typically pressed into the yokes of the U-joint and provide a smooth surface for the needle bearings to rotate.

Snap Rings

Snap rings are used to secure the bearing cups in place within the yokes of the U-joint. They prevent the cups from sliding out during operation.

Grease Fittings (optional)

Some universal joint spider kits may also include grease fittings or zerks. These fittings allow for the lubrication of the U-joint components, ensuring smooth operation and extending the lifespan of the joint.

Features:

Universal joint spider kits are a vital part of any drivetrain system, providing efficient power transfer between shafts. These kits come equipped with a variety of features that contribute to their functionality and ease of use. Let's take a closer look at some common features found in these kits:

When it comes to durability and performance, universal joint spider kits do not disappoint. These kits are typically made from high-grade steel or alloy, ensuring long-lasting reliability even in demanding conditions. With their sturdy construction, they can withstand heavy loads and rough terrain without compromising on efficiency.

To ensure optimal performance, universal joint spider kits are designed to provide a precise fit for specific U-joint applications. Manufacturers carefully match the dimensions and specifications of the original equipment, guaranteeing proper alignment and functionality. This results in smooth power transfer and a longer lifespan for your drivetrain system.

One of the key components of a universal joint spider kit is the inclusion of needle bearings or bushings. These components fit into the bearing cups of the U-joint spider and reduce friction, enabling smooth rotation. This friction-free operation extends the lifespan of the joint and ensures efficient power transfer between shafts.

The kit also includes bearing cups that house the needle bearings or bushings. These cups are specifically designed for easy installation and secure retention of the bearings, maintaining proper alignment and stability. This ensures smooth operation and reduces the risk of any damage to your drivetrain system.

To further enhance stability and secure the bearing cups in place, universal joint spider kits often come with snap rings or retaining clips. These clips prevent any unwanted movement or disassembly during operation, ensuring the smooth and uninterrupted transfer of power between shafts.

Some universal joint spider kits even come equipped with integrated grease fittings or zerks. These allow for easy lubrication of the U-joint components, ensuring smooth operation and extending the lifespan of the joint. With proper lubrication, you can maintain the efficiency of your drivetrain system and minimize the need for frequent replacements.

Technical Parameters:

Applications:

Universal joint spider kits are essential for repairing or replacing universal joints (U-joints) in various drivetrain components of vehicles. These kits have several applications, including:

• Driveshafts: Universal joint spider kits are commonly used to repair or replace U-joints in driveshafts (propeller shafts). These shafts transmit torque from the transmission or transfer case to the differential, allowing for power transfer to the wheels.
• Axle Shafts: Vehicles with solid axles can utilize universal joint spider kits to service the U-joints in axle shafts. These shafts transmit power from the differential to the wheels, enabling them to rotate.
• Cardan Shafts: Cardan shafts, also known as propshafts or propeller shafts, are responsible for transmitting torque between different components such as the transmission, transfer case, and differential. Universal joint spider kits can be used to repair or replace the U-joints in cardan shafts.
• Power Take-Off (PTO) Shafts: PTO shafts are commonly used in vehicles with auxiliary equipment or machinery. Universal joint spider kits are employed to service the U-joints in PTO shafts, ensuring smooth power transfer to the attached equipment.

Packing and Shipping:

At Toyota, we understand the importance of quality packaging and efficient shipping for our auto parts. That's why we have a comprehensive system in place to ensure that our products arrive at their destination safely and on time.

Our auto parts are carefully packaged to protect them from any potential damage during transportation. We use high-quality materials, such as bubble wrap, Styrofoam, and corrugated cardboard boxes, to ensure that our products are well-protected.

In addition, we also take into consideration the size and weight of our auto parts when selecting packaging materials. This helps to reduce the likelihood of any mishandling or damage during shipping.

We work with trusted and reliable shipping partners to ensure that our products are delivered to our customers safely and efficiently. Our shipping options include ground, air, and sea transportation, depending on the destination and urgency of the order.

For international shipments, we carefully follow all customs regulations and provide all necessary documentation to ensure a smooth delivery process.

We also offer tracking services for our shipments, so customers can easily monitor the progress of their orders and receive timely updates on the estimated delivery time.

At Toyota, we are committed to providing the best packaging and shipping services for our auto parts, so our customers can have a hassle-free experience with our products. Trust us to deliver your auto parts with care and efficiency.
