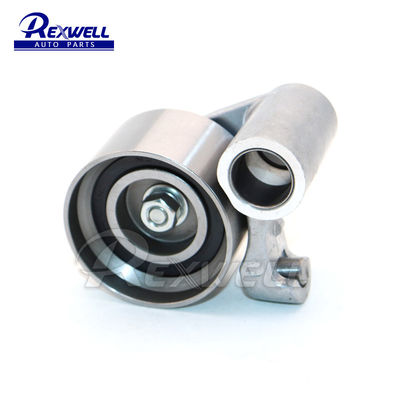

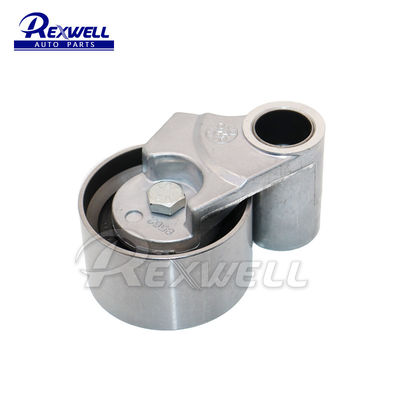

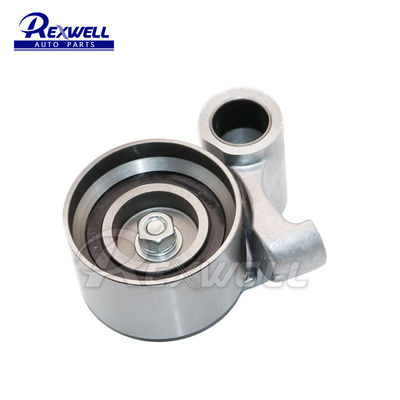

13505-50021 13505-50010 13505-50030 Timing Belt Tensioner For Land Cruiser 2UZ 3UZ Lexus LX470 GX470

A timing belt tensioner is a component in an engine's timing belt system that helps maintain the proper tension of the timing belt. Here is a description of a typical timing belt tensioner:

1. Construction: A timing belt tensioner consists of a housing, a pulley or roller, a spring, and various mechanical components. The housing encloses the internal components and provides a mounting point for the tensioner. The pulley or roller is designed to guide and maintain tension on the timing belt. The spring applies force to the pulley or roller, keeping the timing belt tight.

2. Tension Adjustment: The tensioner is designed to automatically adjust the tension of the timing belt. It compensates for the natural stretching and wear of the belt over time, ensuring that it remains properly tensioned. This helps prevent slippage, misalignment, or premature wear of the timing belt, which is critical for correct engine timing and operation.

3. Pulley or Roller Design: The pulley or roller in the tensioner is typically made of durable materials, such as steel or reinforced plastic, that can withstand the forces exerted on the timing belt. It is designed with grooves or ridges to match the shape of the timing belt teeth, providing precise guidance and minimizing belt movement.

Timing belt tensioners offer several features that contribute to their effectiveness and reliability in maintaining proper tension in the timing belt system. Here are some common features found in timing belt tensioners:

1. Automatic Tension Adjustment: Timing belt tensioners are designed to automatically adjust the tension of the timing belt. They compensate for the natural stretching and wear of the belt over time, ensuring that it remains properly tensioned without manual intervention. This feature helps maintain optimal performance and longevity of the timing belt.

2. Spring Mechanism: Timing belt tensioners incorporate a spring mechanism that applies consistent force to the tensioner pulley or roller. The spring is calibrated to provide the appropriate tension based on the engine's specifications and the specific requirements of the timing belt system. It compensates for belt wear and stretch, helping to prevent slack or excessive tension in the timing belt.

3. Tensioner Pulley/Roller Design: The pulley or roller in the tensioner is engineered to guide the timing belt smoothly and accurately. It is typically designed with grooves or ridges that match the shape of the timing belt teeth, ensuring proper alignment and reducing the risk of slippage or belt misalignment. The pulley or roller is often made of durable materials to withstand the forces exerted by the timing belt.

4. Bearing or Bushing: Many timing belt tensioners incorporate a bearing or bushing to provide smooth rotation of the pulley or roller. This reduces friction and wear on the timing belt, ensuring efficient power transfer from the crankshaft to the camshaft(s).

The timing belt tensioner is a critical component in the timing belt system of an internal combustion engine. Its primary application is to maintain the proper tension of the timing belt, which ensures the synchronization of the engine's camshaft(s) and crankshaft. Here are the key applications of a timing belt tensioner:

1. Timing Belt System Maintenance: The timing belt tensioner is an integral part of routine maintenance for engines equipped with timing belts. During scheduled maintenance intervals, the timing belt and tensioner are inspected for wear, damage, or signs of aging. If necessary, the tensioner is replaced along with the timing belt to maintain optimal performance and prevent potential failures.

2. Timing Belt Replacement: When the timing belt reaches its recommended service interval or shows signs of wear, it must be replaced. The timing belt tensioner is typically replaced simultaneously to ensure proper tension and synchronization. During this process, the old tensioner is removed, and a new one is installed to maintain the correct tension on the newly installed timing belt.

3. Engine Overhaul and Rebuild: In cases where the engine is being overhauled or rebuilt, replacing the timing belt tensioner is a standard practice. As part of the engine rebuild process, all timing belt components, including the tensioner, are inspected, and worn or damaged parts are replaced to ensure reliable engine operation.
